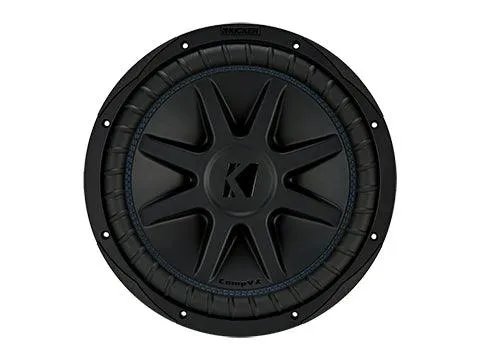

12" Kicker CompVX 4 Ohm
The CompVX™ is armed with a ribbed Santoprene® surround that keeps the thick polypropylene cone firing flawlessly.
12" CompVX 4 Ohm
A cast aluminum with motor-cooling perimeter venting and spring-loaded terminals that can accept up to 10-gauge wire, so when you run hundreds of watts to this sub, it gives you loud, distortion-free bass.
Features:
- Dual Four-Ohm Voice Coils
- Thick Polypropylene Cone
- Signature Double Blue Surround Stitching
- Ribbed Santoprene® Surround
- SoloKon™ Cone Reinforcement
- Oversized Suspension System
- High-Strength Insulated Tinsel Leads
- High Temp Voice Coil
- Perimeter Venting for Thermal Management
- Massive Ceramic Magnet
- UniPlate™ Extended Pole Piece & Backplate For Superior Heat Dissipation
- Cast Aluminum Basket
- Satin Nickel Spring-Loaded Speaker Terminals
Want setup help? Go to for a free woofer & amplifier configuration app!
*The CompVX 12-Inch Subwoofer works best with a sealed or ported enclosure and 750 watts of recommended power. See below for more details.
| Thiele/Small Parameters |
| Size (IN.,CM) |
| 12, 30 |
| Impedance (OHMS) |
| 4 DVC |
| Max Rec Amplifier Power (WATTS PEAK/RMS)* |
| 1500/750 |
| Sensitivity (dB 1w/1m) |
| 87.1 |
| Frequency Response (Hz) |
| 20-500 |
| Mounting Depth (in, cm) |
| 6-11/16, 16.9 |
| Mounting Cutout (in, cm) |
| 11-1/16, 28 |
| Min Sealed Box Vol (cu. ft, L) |
| 1.0, 28.3 |
| Max Sealed Box Vol (cu. ft, L) |
| 4.6, 130 |
| Min Vented Box Vol (cu. ft, L) |
| 1.75, 49.6 |
| Max Vented Box Vol (cu. ft, L) |
| 2.25, 63.7 |
| What's in the box? |
| one 12-inch subwoofer, one owner's manual, two stickers |
*Assumes typical music program with minimal amplifier clipping; varies with enclosure size. See your KICKER dealer for details.
**Port Volume Excluded.
Due to continual developement, product, and specifications are subject to change without notice. Stillwater Designs and it's agents are not responsible for typographical errors.
