Product Details
＋
Adapters/couplers and patch cables are NOT included.
Description

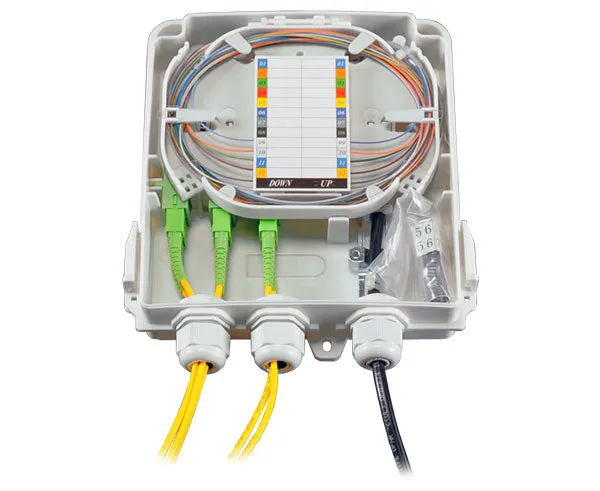

Wall Mounted, Plastic Fiber Distribution Unit
- Holds 8 Adapters/Couplers with SC Simplex Footprint
- Up to 12 Splices
The FB23-4849-WM12PL is a new generation product for fiber to the home. This box is light and compact and is specially designed for connecting and protecting fiber cables. Applications: FTTH, FTTB, FTTP, FTTC, Telecommunication Network, CATV, Local Area Network.
Cleaning your fiber connector end faces and components regularly is crucial for avoiding a total network failure. Ensure your optical fiber system is working properly and prevent major network issues with and
Features
- Suitable for wall-mounting installation
- Suitable for 8 SC adapters

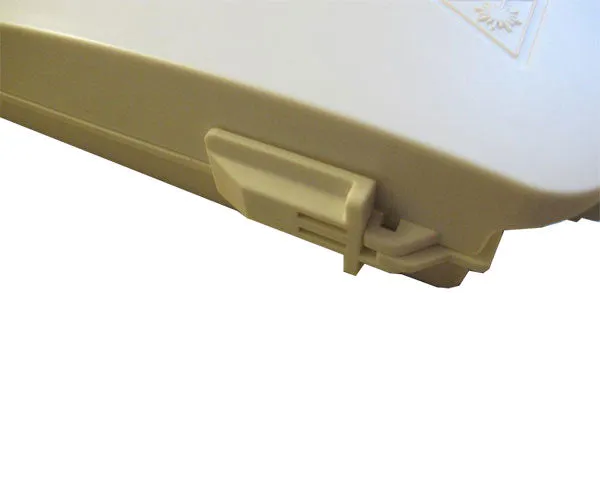

- Easily to access the box by sliding shackle
- Applicable for outdoor cables or indoor soft cables
- Size: 8.3x6.9x2in (210x175x50mm)
- The maximum capacity is 12 fibers
Specifications
Specification
Capacity |
|
|---|---|
| Splices | (12) splices |
| Adapters | (8) SC Simplex Sold Separately or (8) LC Duplex with SC Simplex Footprint Sold Separately |
Dimensions |
|
|---|---|
| Depth | 2" |
| Height | 8.3" |
| Width | 6.9" |
Physical Properties |
|
|---|---|
| Material | Plastic |
| Color | Off White |
