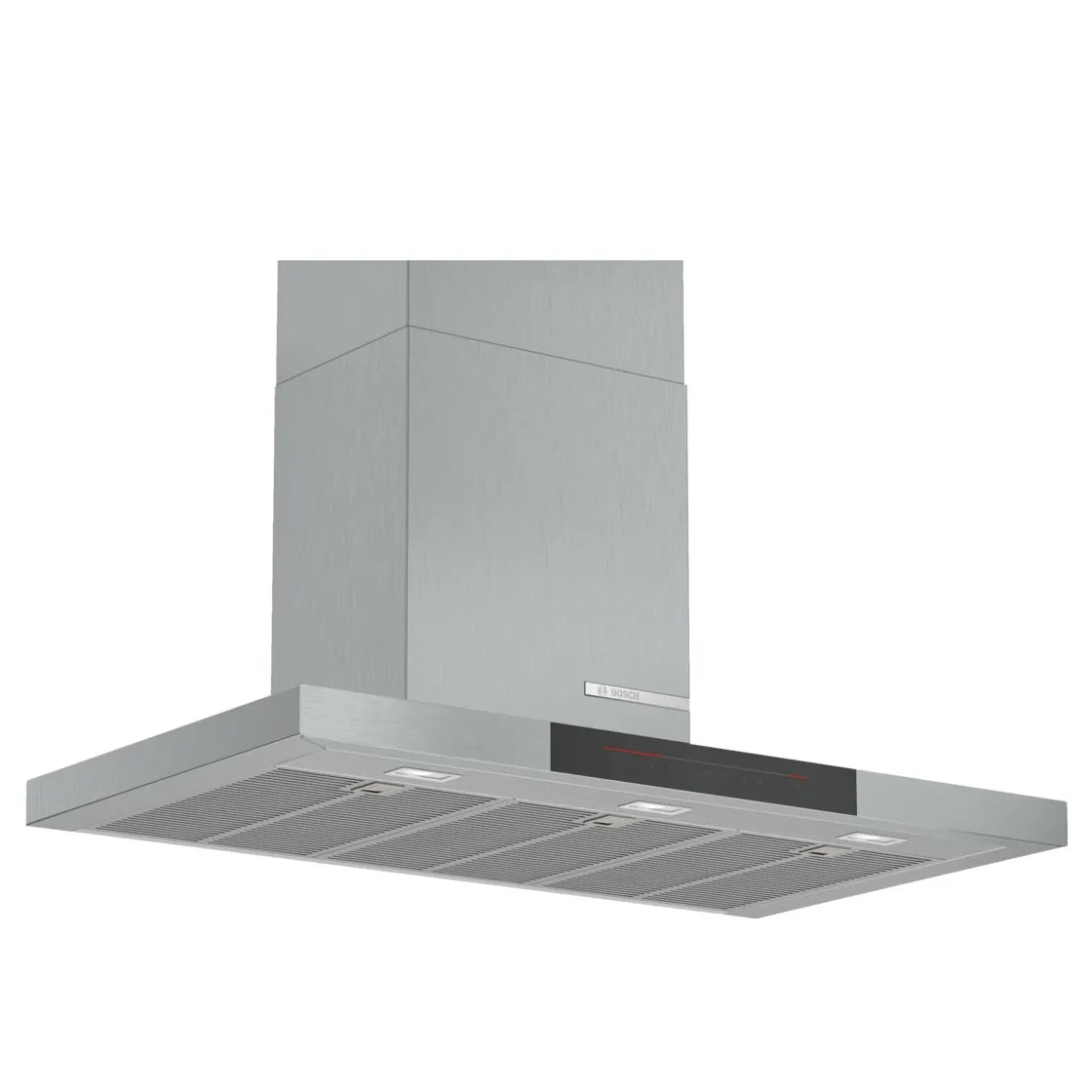

Name: DWB98JQ50B 90CM CHIMNEY HOOD
SKU: 488912

Product Details ＋

The wall-mounted chimney hood: Mount it on the wall for complete freedom in your kitchen planning

HIGHLIGHTS

A strong heart that beats quietly.

Through the use of a high-powered fan and optimised air flow within the hood, a Bosch cooker hood with EcoSilence Drive™ motor technology saves over 80% in energy during average operation* compared with a tradition Bosch cooker hood. In addition, the EcoSilence Drive™ motor causes no mechanical friction. So instead of wasted energy, wear and noise, that means efficiency, durability and quiet running. And you can really hear the difference. * With an average fan operation of one hour on level 2 per day and with the light on for 2 hours per day.

Low noise levels.

Your guests are not alone in appreciating a relaxed cook. So you can chat with your guests while cooking, we have made our recirculation cooker hoods so quiet you hardly notice them. Generally, a swishing sound is generated by the noise of the motor itself and the air flow, depending on the level of counterpressure. On ducted models, 50 % of the noise is ducted to the outside. Bosch cooker hoods with the CleanAir module generate up to 3 dB(A) less noise than conventional recirculation systems while offering the same performance.

The optimum air volume for kitchen of all sizes.

No matter whether you have an open-plan kitchen and living-room or a small, closed-off kitchen. We offer the optimum air volume for kitchens of all sizes. Air should be exchanged 6 to 12 times an hour to ensure a consistently pleasant ambience. To do so, the air delivery volume or power of the cooker hood must be appropriate to the room volume.

FEATURES

DESIGN

90 cm wide
Box brand design
Wall mounted hood
electronic controls via TouchControl with lightline

PERFORMANCE

3 fan speeds setting plus 2 intensive
Extraction rate according to EN 61591 ø 15 cm:
max. Normal use 430 m³/h
Intensive 843 m³/h
Extraction rate in recirculation mode:
Max. normal use: 311 m³/h
Intensive: 385 m³/h
Noise level according to EN 60704-3 and EN 60704-2-13 exhaust air:
Max. normal use: 55 dB(A) re 1 pW (42 dB(A) re 20 µPa sound pressure)
Intensive: 69 dB(A) re 1 pW (56 dB(A) re 20 µPa sound pressure)
Noise levels in recirculation mode:
Max. normal use: 69 dB(A) re 1 pW (56 dB(A) re 20 µPa sound pressure)
Intensive: 74 dB(A) re 1 pW (61 dB(A) re 20 µPa sound pressure)

COMFORT

Automatic intensive revert after 6 min.
Automatic run on for 10 min.
Additional noise insulation
removable metal grease filters
Easy to clean yes
air quality sensor 1.1
Dimmer function
softLight
Efficient BLDC-technology
3 x 1.5W LED
3 removable metal grease filters
Saturation indicator for metal and charcoal filter

TECHNICAL INFORMATION

Suitable for ducted or recirculating operation
Recirc. kit or clean air kit
Wall fixing system
Dimensions exhaust air (HxWxD mm): 628-954 x 898 x 500
Dimensions recirculating (HxWxD mm): 628-1064 x 898 x 500
Dimensions recirculating with CleanAir module (HxWxD mm):
689 x 898 x 500 - mounting with outer chimney
809-1139 x 898 x 500 - mounting with telescopic chimney
Diameter pipe Ø 150 mm (Ø 120 mm enclosed)
Electrical connection rating: 165 W
Electrical cable lenght 1.3 m
Voltage: 220 - 240 V

SPECIFICATIONS

GENERAL
Width	90 cm
Depth of the product	500 mm
Construction type	Built-in
Operating Mode	Convertible
Sound pressure max. normal	42 dB (A)
Type of control setting and signalling devices	touch control
Total annual energy consumption	29.9 kWh/annum
Power consumption standby/display off	0.5 W

CONSTRUCTION TYPE
Diameter of air outlet (mm)	150 / 120 mm
Colour	Stainless steel
Grease filter material	Washable stainless steel
Grease filter type	Kassette
Installation typology	Wall-mounted
Material of the body	Stainless steel
Motor location	Integrated motor in hood chimney
Number of motors	1
Operating Mode	Convertible
Typology	Chimney

CONNECTION
Connection rating (W)	165 W
Length electrical supply cord (cm)	130 cm
Frequency (Hz)	60; 50 Hz
Total power of the motors (W)	160 W
Voltage (V)	220-240 V
