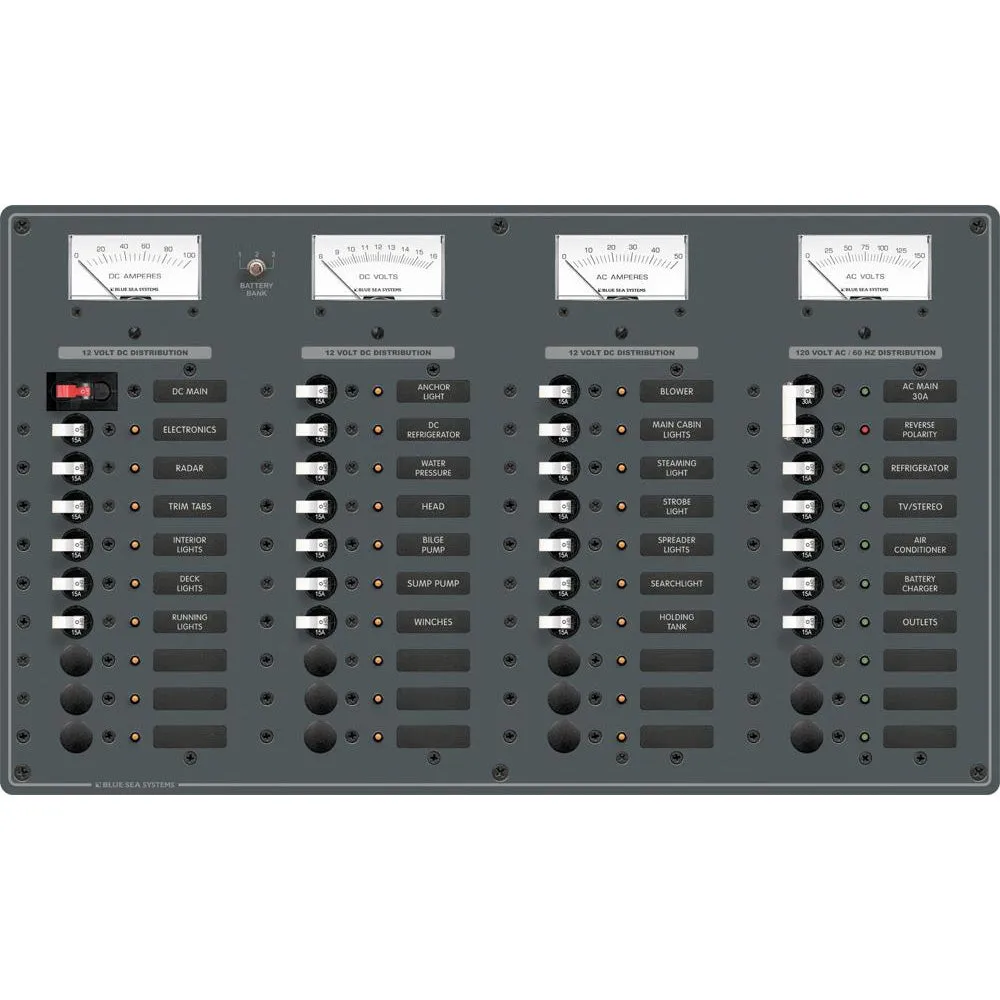

![Blue Sea 8095 AC Main 8 Positions / DC Main 29 Positions Toggle Circuit Breaker Panel (White Switches) [8095]](https://www.worelesshome.shop/image/blue-sea-8095-ac-main-8-positions-dc-main-29-positions-toggle-circuit-breaker-panel-white-switches-8095_tPACQL_1.webp)
Product Details
＋
AC Main 8 Positions / DC Main 29 Positions
PN: 8095
White Switches
- Includes set of 30 common AC and 30 common DC labels
- All AC and DC buses installed, fully pre-wired
- Label backlighting pre-installed
- All LEDs installed
- Maximum panel Amperage
- 100 Amperes DC
- 50 Amperes AC
- 100 Amperes DC
AC Features
- Red reverse polarity indicating LED
- 9353, 0-150 Volt AC Voltmeter
- 9630, 0-50 Amp AC Ammeter
DC Features
- 100 Amp C-Series circuit breaker provides main circuit protection and switching for DC branch circuits
- 8003, 8-16 Volt DC Voltmeter
- 8017, 0-100 Amp DC Ammeter
- Owner upgradeable to 24 Volts with 8240, 18-32 Volt DC Voltmeter
Specifications:
- AC Positions: Source Selectors 8
- DC Positions: Main 29
- 120 Volts AC
- 12 Volts DC
- (1) 30A - (5) 15A AC Circuit Breakers
- (1) 100A - (20) 15A DC Circuit Breakers
Combined AC/DC panels require a AC Insulating Cover to meet ABYC Standards
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to .
Specifications:
- Max Breaker Quantity: 8 AC / 29 DC
- AC/DC: Both
- Voltage: 120v/12v
- Box Dimensions: 7"H x 15"W x 22"L WT: 8 lbs
- UPC: 632085080952
