Product Details
＋

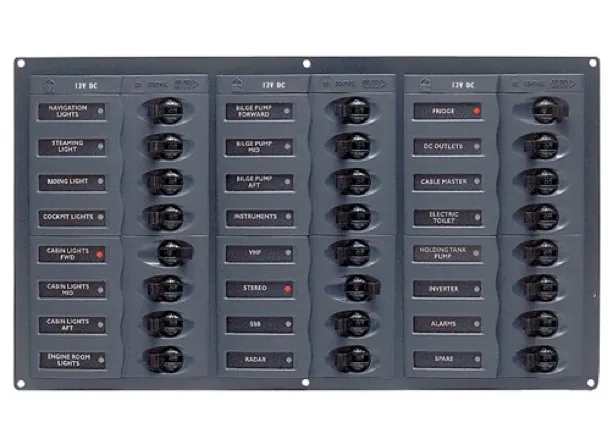

BEP 12V DC Circuit Breaker Panel 24 Way - Square - No Meters
Key Features
- Red LED indicates systems on
- 12V
- Marine grade powder coated aluminium
- ABYC standard voltage indication
- Green LED backlit labels
- Stylish clip on contour fascia
- Label sets and busbar supplied with panels
- Cutout size - 10mm (3⁄8") inside all external edges
Specification & Dimensions
- No of Circuits: 24
- Circuit Breakers: 5 x 5A, 8 x 10A, 8 x 15A, 1 x 20A, 1 x 25A, 1 x 30A
- Negative Bus: 12 Way
- Height: 200mm
- Width: 351mm
- Depth: 65mm
