Naujieji "PowerQuest 303, 505 ir 707" maitinimo kondicionieriai, pasižymintys išskirtinėmis "AudioQuest" charakteristikomis.

• PQ-716: "ZERO-Tech", užtikrinanti nesuspaustus srovės pereinamuosius procesus, ir "RF/ND-Tech", užtikrinanti precedento neturintį triukšmo sklaidymą, šiame 2 m ilgio RF triukšmą sklaidančiame kabelyje su pusiau kietais koncentriniais laidininkais, kuriuose naudojamas ilgagrandis varis (10 amperų @ 240 V).
• Apsauga nuo  viršįtampių.
• Diferencinis režimas: PQ-505); 8 kHz-1 GHz (PQ-707); Bendrasis režimas: 30 kHz-1 GHz (PQ-505); 8 kHz-1 GHz (PQ-707): 30kHz-100MHz (abu modeliai).
• Linijinis triukšmo skaidymas daugiau nei -22 dB.

APRAŠYMAS

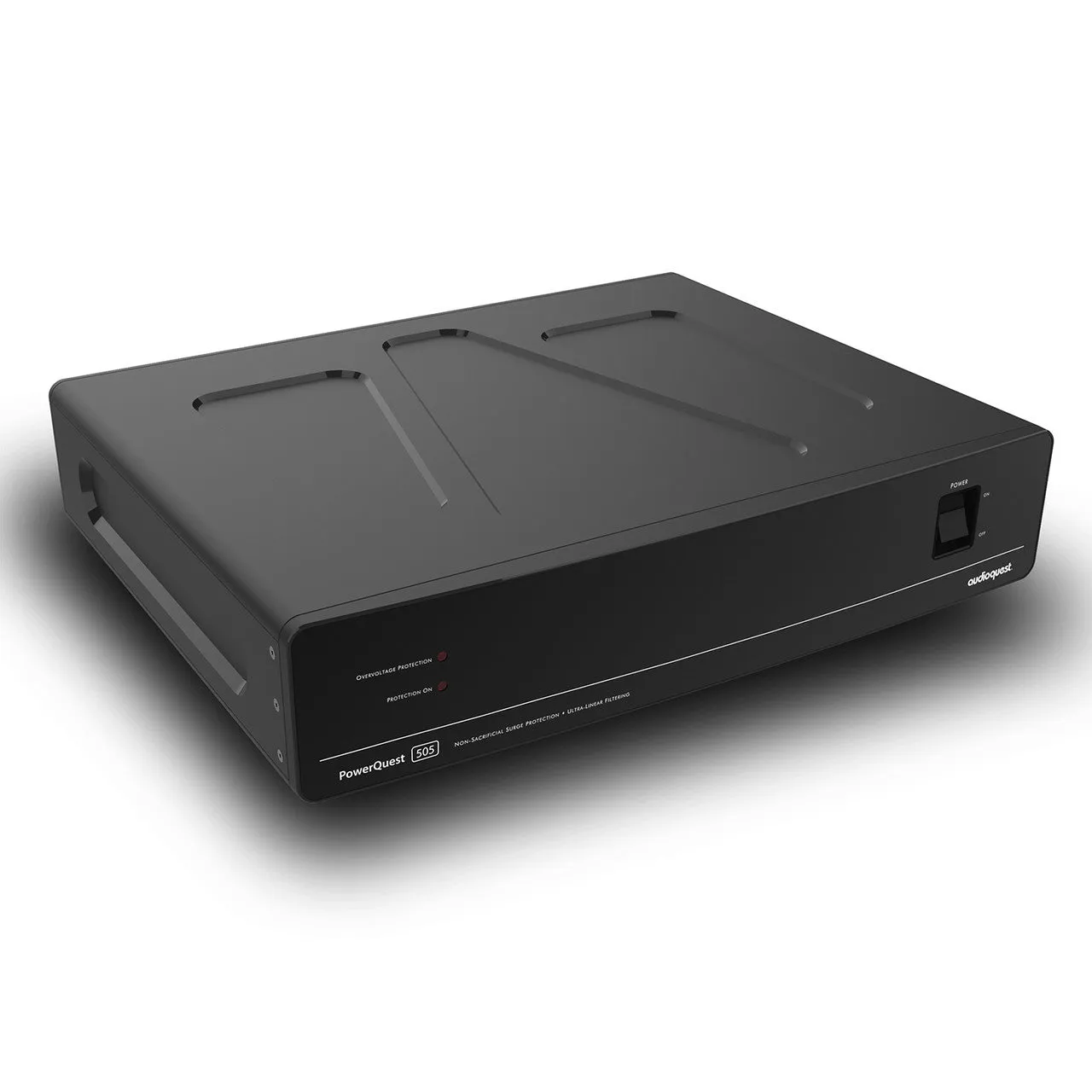

Matching outstanding AudioQuest performance with non-sacrificial surge protection, the new PowerQuest 303, 505, and 707 power conditioners create excellent foundations for stereo systems, multichannel home theaters, and custom installations.

Performance: All models take AudioQuest's comprehensive approach to AC power conditioning, addressing noise linearly to provide class-leading, wide-bandwidth noise reduction.

Protection: All models feature Non-Sacrificial Surge Protection and Extreme-Voltage Automatic Shutdown at 140VAC. Set and forget.

Power: All models provide 12 total AC outlets: 4 High-Current outlets for amplification devices and 8 Linear-Filtered outlets for source devices.

In addition, all models come with optional 2RU rack ears and a detachable 2m PowerQuest power cable with a flat-to-wall plug. For installers, this means each PowerQuest unit is ready to go from the box to the rack in just minutes.

TECHNINIAI DUOMENYS

SPECIFIKACIJOS

PQ-715 POWER CABLE WITH FLAT-TO-WALL PLUG

PQ-716: ZERO-Tech for uncompressed current transients and RF/ND-Tech for unprecedented Noise-Dissipation in this 2m RF-Noise Dissipating cable with Semi-Solid Concentric Conductors using Long-Grain Copper (10amps @240V)

ULTRA-LINEAR NOISE-DISSIPATION (MORE THAN -22DB)

Differential-Mode: 30kHz-1GHz (PQ-505); 8kHz-1GHz (PQ-707); Common-Mode: 30kHz-100MHz (both models)

NON-SACRIFICIAL SURGE PROTECTION

Nothing to damage with repeated 6000V/3000A input surge tests, which is the maximum that can survive a building’s AC electrical panel.

EXTREME VOLTAGE SHUTDOWN

140VAC: Will activate the main power circuit relay to open within less than 0.25 seconds; automatically resets once the incoming power is within a safe range.

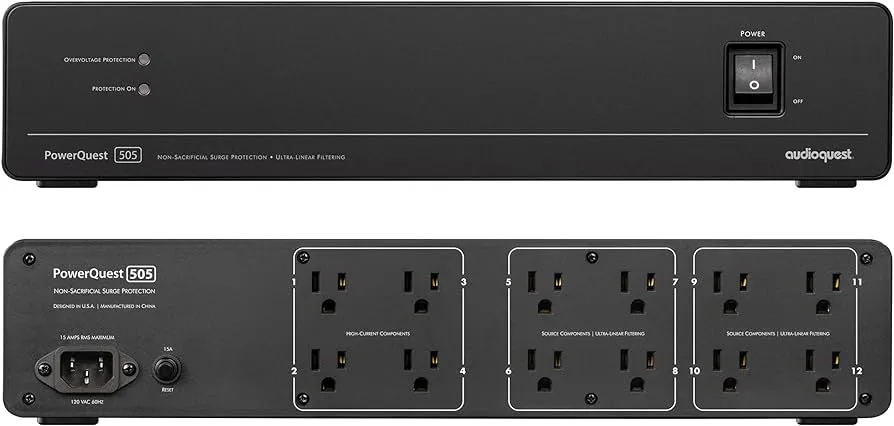

OPTIMIZED OUTLETS

8x Linear-Filtered for Source / Constant-Current components (TVs, media streaming devices, etc.); 4x High-Current for Variable-Current components (amplifiers, powered speakers & subwoofers)

RACK-MOUNTABLE

2RU rack ears included
